明纬 MEAN WELL RS-100-48
DC VOLTAGE：48V/2.3A (INPUT)EFFICIENCY (Typ.)：84% (PROTECTION)OVER VOLTAGE：55.2~64.8V;Protection type : Hiccup mode, recovers automatically after fault condition is removed

产品型号：: RS-100-48

市场价：: ￥474.0编号：AM01F0300280003

会员价：: ￥312.0(6.5822787折)

成为VIP可享受更多优惠什么是VIP？

货期：: 现货查询配送方式

运费：: 标准快递方式：快递标准费用
货到付款方式：快递标准费用+服务费查看运费规则

DC VOLTAGE：

(INPUT)EFFICIENCY (Typ.)：84%
(PROTECTION)OVER VOLTAGE：55.2~64.8V;Protection type : Hiccup mode, recovers automatically after fault condition is removed

更多选型

我要买:

(件)

如您需要多个型号商品一起下单，可以尝试多商品报价下单功能

商品详情
规格参数
购买咨询
商品评价

型号：RS-100-48

参数：DC VOLTAGE：48V/2.3A (INPUT)EFFICIENCY (Typ.)：84% (PROTECTION)OVER VOLTAGE：55.2~64.8V;Protection type : Hiccup mode, recovers automatically after fault condition is removed

品牌：明纬

系列简介及说明

Universal AC input / Full range
Protections:Short circuit/Over load/Over voltage
Cooling by free air convection
LED indicator for power on
100% full load burn-in test
All using 105
Withstand 300VAC surge input for 5 second
High operating temperature up to 70
Withstand 5G vibration test
High efficiency, long life and high reliability
3 years warranty

注意事项

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Line regulation is measured from low line to high line at rated load.
5. Load regulation is measured from 0% to 100% rated load.
6. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets
EMC directives.
7. Length of set up time is measured at cold first start. Turning ON/OFF the power supply very quickly may lead to increase of the set up time.

安装方式

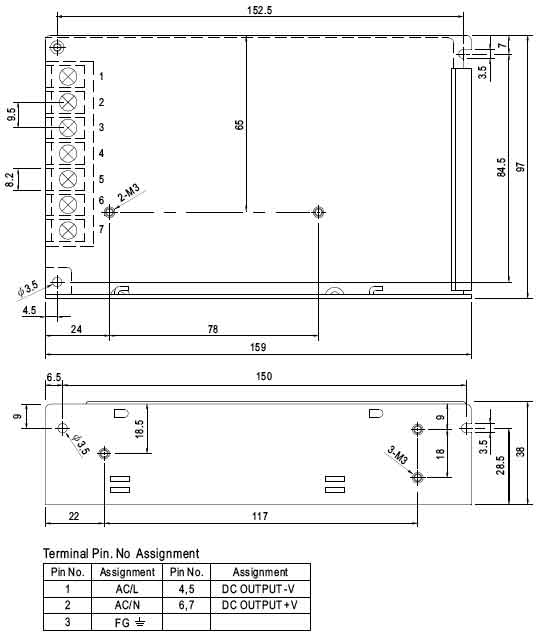

Mechanical Specification
Case No. 901C Unit:mm
RS-100 series安装方式

购买必读

系统通用指标
(OUTPUT)LINE REGULATION	±0.5%
(OUTPUT)SETUP, RISE TIME	500ms, 20ms/230VAC 1200ms, 30ms/115VAC at full load
(OUTPUT)HOLD TIME (Typ.)	100ms/230VAC 18ms/115VAC at full load
(INPUT)VOLTAGE RANGE	88~264VAC 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)
(INPUT)FREQUENCY RANGE	47~63Hz
(INPUT)AC CURRENT (Typ.)	2.5A/115VAC 1.5A/230VAC
(INPUT)INRUSH CURRENT (Typ.)	COLD START 40A/230VAC
(INPUT)LEAKAGE CURRENT	<2mA / 240VAC
(PROTECTION)OVER LOAD	110~150% rated output power;Protection type : Hiccup mode, recovers automatically after fault condition is removed
(ENVIRONMENT)WORKING TEMP.	-25~+70℃(Refer to output load derating curve)
(ENVIRONMENT)WORKING HUMIDITY	20~90% RH non-condensing
(ENVIRONMENT)STORAGE TEMP., HUMIDITY	-40~+85℃, 10~95% RH
(ENVIRONMENT)TEMP. COEFFICIENT	±0.03%/℃(0~50℃)
(ENVIRONMENT)VIBRATION	10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes
(SAFETY & EMC)SAFETY STANDARDS	UL60950-1, TUV EN60950-1 Approved
(SAFETY & EMC)WITHSTAND VOLTAGE	I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
(SAFETY & EMC)ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
(SAFETY & EMC)EMI CONDUCTION & RADIATION	Compliance to EN55022 (CISPR22) Class B
(SAFETY & EMC)HARMONIC CURRENT	Compliance to EN61000-3-2,-3
(SAFETY & EMC)EMS IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN61000-6-2 (EN50082-2) heavy industry level, criteria A
(OTHERS)MTBF	260.8Khrs min. MIL-HDBK-217F (25℃)
(OTHERS)DIMENSION	159×97×38mm (L×W×H)
(OTHERS)PACKING	0.6Kg; 24pcs/15.4Kg/0.7CUFT
